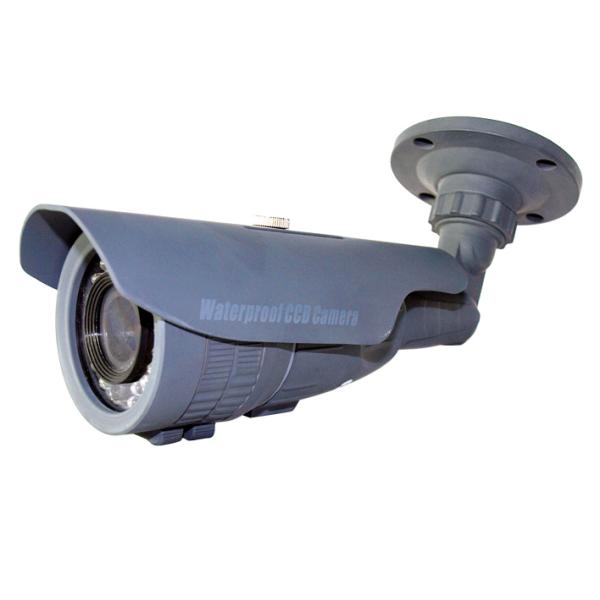

Outdoor WDR CCTV camera,Sony CCD camera ES-3D658

Product Categories

Shenzhen Eye Sight Technology Co., Ltd.

Contact Now

Place of Origin : ShenZheng, China

Brand Name : ES

Model Number : ES-3D658

Certification : CE, FCC

MOQ : 1pcs

Delivery Time : 3-5days after payment confirmed

Payment Terms : T/T,western union

Contact Now

WDR camera, 1/3” Sony super HAD CCD camera 650TVL , φ5* 24IR LED, 3D-DNR 120DB, with menu, 6mm lens, waterproof IP66,

metal, Smart motion detection

Product Function Introduction

· Aluminium Materials Vandal & Waterproof Shape(IP66)

· 30M IR distance, 6mm lens( 24pcs IR led)

· 650Tvl 1/3" Sony Super HAD CCD

· WDR, OSD, SMART MD, ATW, AGC, 3D-DNR, SENS-UP, DIS, RS-485

· WDR to 120DB can be adjustable

· Housing: Metal

Item No		ES-3D659	ES-3D658
CCD Type		1/3″ SONY SUPER HAD CCD
Application		Outdoor waterproof 30IR LED 4-9MM LENS	Outdoor waterproof 24IR LED 6MM LENS
Resolution		650 TVL
Minimum illumination		0.01LUX
Signal System		PAL / NTSC
Validity Pixel		PAL:1020(H)×596(V)610K
		NTSC: 1020(H)×508(V)520K
Effective Pixel		PAL:976(H) x 582(V)570K NTSC:976(H) x 494(V)480K
Video output		1.0Vp-p Composite output, 75Ω, BNC connector
Power		DC 12V±15%
Function	WDR	120DB
	2D/3D DNR	0～5(3D-NR)
	Frame cumulation	off /x2/x4/x8/x16/x32/x64/x128/x256
	Anti-shake	on/off
	Digital Effect	off/ hori/ vert/ mirror/rotate
	Digital Zoom	10X
	LCD/CRT	connectable
	surrounding brightness compensation	0～50
	RJ485 Port	Communication Protocol
		:PELCO-D Baud rate:2400/4800/9600/14400/19200/38400
	OSD	YES
	WB model	ATW/AWB/MANUAL/PUSH
	Strong Light inhibition	0～60
	Freeze	On/ Off
	Smart Motion Detection	Smart MD/Regional MD
	Day/Night Switch	Auto/ Color/ Black and White/ EX-CDS
	Mask Area	8 Area
	Language	Chinese/ English
Electronic Shutter		1/50 ~ 1/100, 000s--1/60 ~ 1/100, 000s
S/N Ratio		> 48dB
Working Temperature		-10℃～+60℃
Storage Temperature		-20℃～+70℃
Working Humidity		Lower than 90%
