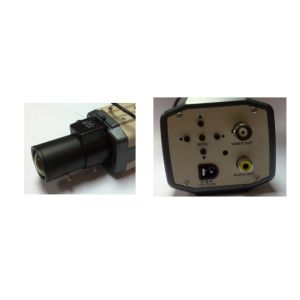

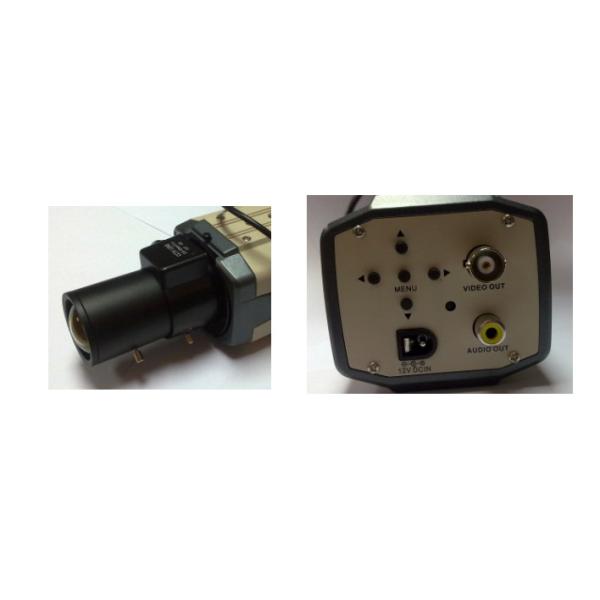

WDR CCTV camera ES-2D639 2D-DNR 100DB Smart motion detection

ES-2D639 Specification

Image Sensor

1/3" SONY SUPER HAD CCD

Horizontal Resolution

580 TVL

Minimum Illumination

0.01LUX

Lens

Auto iris 2.8-12mm

OSD

√

WDR

100DB

2D-DNR

√

3D-DNR

LCD/CRT

√

Digital Zoom

Stabilizer(EIS)

Digital Effect

Motion Detection

SENS-UP(X256)

Signal System

PAL/NTSC

Shutter Speed

1/50 ~ 1/100, 000Sec

S/N ratio

>50dB

Power Supply

DC 12V±15% / AC 24V±10%

Weight

400g

Size

130mm(L)*70mm(W)*60mm(H)

Exposure

Exposure:normal / BLC / WDR / HLI
Sense up: off / x2 / x4 / x8 / x16 / x32 / x64 / x128 / x256
AGC: off / low / middle / high
Len: Electric / DC IRVS
brightness: 0-90

Enhance

Gamma: 0.3 / 0.45 / 0.6 / 1.0
3D DNR: 0-5
Monitor: CRT / LCD
DPC: off / auto
Lens corr: 0-50

Day&Night

mode: auto / day / night
burst: off / on
day/night: 0-255
delay time: 0-10
IR LED model: manual / auto
IR LED level: 0-200

Exit

Exit
save / exit
initialize

Color

WB model:ATW / AWB / MANUAL / PUSH

Effection

Freeze:off / on
mirror: off / hori / vert / rotate
Digital Zoom: off / on
Sharpness: 0-49
stabilizer: off / on

Motion Detection

motion detection: on / off
Alarm model: off / message / area
Sensitivity: 0-20
Area select: 1/2/3/4
Output time: 0-10

System

Comm ID:0-254
RS-485: Pelco-D
Baud rate: 2400 / 4800 / 9600 / 14400 / 19200 / 38400
Title: off / on
Language: Chinese / English

Privacy

Mask select:1-8
mode: off / on
color: 0-7
Top / left / right / bottom / move
